Servicing the DPS pumps, manufactured by Delphi Lucas CAV

Follow

9731-B, Complete tool box for assembly and disassembly of CAV-DPS pumps

(FORD TRANSIT I.D. - FORD YORK - VW GOLF)

31 items, 51 particulars

9664-B, Auto advance device for DPS pumps (10 pieces)

  • CAV 7244-447
  • CAV 7244-572
  • CAV 7244-435

9288, Internal pressure gauge 0 - 2,5 BAR with bumper gliceroil

9304, Gauge kit for DPS pumps

  • CAV 7244-275 A

9303, Transfer pressure adapter

  • CAV 7244-382

9667, Bush couple - for advance shaft OR mm 6,2 x 30 and for extra shaft mm 7,2 x 25

  • CAV 7244-441
  • CAV 7244-442

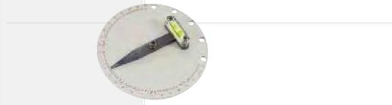

9305, Timing disk bubble

  • ARD 20/1

9761-A7, TORX T25 wrench with 1,5 mm hole

  • CAV 7244-437

9306, TORX T20 wrench

  • CAV 7244-438

9310, TORX T15 wrench

  • CAV 7244-439

9316, TORX T10 wrench

  • CAV 7244-439 A

9570, Adjusting wrench 3/32'' - union 14 x 1,5

  • CAV 7244-571

9570-A, Adjusting wrench 3/32''union 12 x 1,5

  • CAV 7244-410 A

9290, Reduction union 14 x 1,5 - 7/16''

9291, Reduction union 14 x 1,5 - 1/2''

9674, Timing lock for CAV-DPS pumps

  • CAV 7244-448

9761-A8, Comparator bearing in 4 piecesfor the timing of CAV-DPS pumpsand without reduction forBOSCH EP...VE pumps

9671, oil seal inserterDPS pump drive shaftØ 17

  • CAV 7244-445
  • CAV 7244-445 A

9329, Toothed wrench 1/2''for CAV-DPSpump cam screw (FORD TRANSIT)

  • CAV 7244-573

9728, Toothed wrench couple controlfor DPS pump (FORD TRANSIT)

9330, Oil seal guide

  • CAV 7244-485

9782, Time holding pins(FORD TRANSIT D.I.)

9669, Operative plate for CAV-DPSmm 68and adaptor ring for DPC pumpsmm 50

  • CAV 1804-411
  • CAV 1804-410

9332, Nylon oil seal inserterØ 20

  • V 706
  • V 612/B

9855, LDA adjusting wrench on CAV-DPS Turbo

  • CAV 7244-586

9865, 3 holes coupling for DPS pumps, direct injection

  • ADC 160

9866, Motoring hub pullerØ 74To be used with pneumatic gun

9856, LDA adjusting wrench on CAV-DPS Turbo

  • CAV 7244-584

9859, Spring LDA adjusting wrench on CAV-DPS Turbo

  • CAV 7244-582

9860, Spring LDA adjusting wrench on CAV-DPS Turbo

  • CAV 7244-581

9572, Graduated checking to survey the totaltravel of the CAV-DPS pumps accelerator lever

  • CAV 7244-411

9572-A, Modification for 9572 to survey the travel fromthe position of the antistopping screw to thenaximum screw on CAV-DPS (ex.: FORD TRANSIT)

  • CAV 7244-583

Other tools (not included is 9731-B)

9478-E, Test bench flange for CAV-DPS pumpswith Ø 68 holeFORD TRANSIT

  • BH 1 685 720 219

9659, Cushioned Coupling for CAV-DPA-DPS-DPC-BOSCH VE

adaptable to all test benches by 9680-A (A) supplied with 3 gears

9659-I20, gear - cone Ø 20 (DPS)

9837-A, Three nylon plugs(our arts. 9837-809-B,9837-809-D, 9837-809C)for manual bearing insertionCAV-DPC, DPS

  • CAV 1804-809 B
  • CAV 1804-809 C
  • CAV 1804-809 D

9676, 8 mm shaped wrenchfor CAV DPC-DPS pumps

9665, Assembly composed by 16 piecesto survey the internal pressureof CAV DPA-DPC-DPS pumps

9668, 360° goniometric disk for the timing of CAV DPA, DPC, DPS pumps equipped with

  • 1x Insert to time CAV DPA, DPC, DPS pumps
  • 2x Reduction rings
  • 1x Checking plate for CAV DPC timing with indicator shaft (to connect with the diesel oil inlet union)

9664-F, ADVANCE GAUGE

9925, Test pipes (Standard design)

  • BH 1 680 750 014
  • Hartridge AHP117

8072/B, Test pipes (rubber covered)

  • BH 1 680 750 014
  • Hartridge AHP117

9927, Test pipes (Standard design)

  • BH 1 680 750 017
  • Hartridge AHP118

8073, Test pipes (rubber covered)

  • BH 1 680 750 017
  • Hartridge AHP118

9077, CAV-DPS pump expeller for LAND ROVERextracts and keeps fasten the timing system
